Air Cooled Chiller vs. Water Cooled Chiller: Key Differences Explained

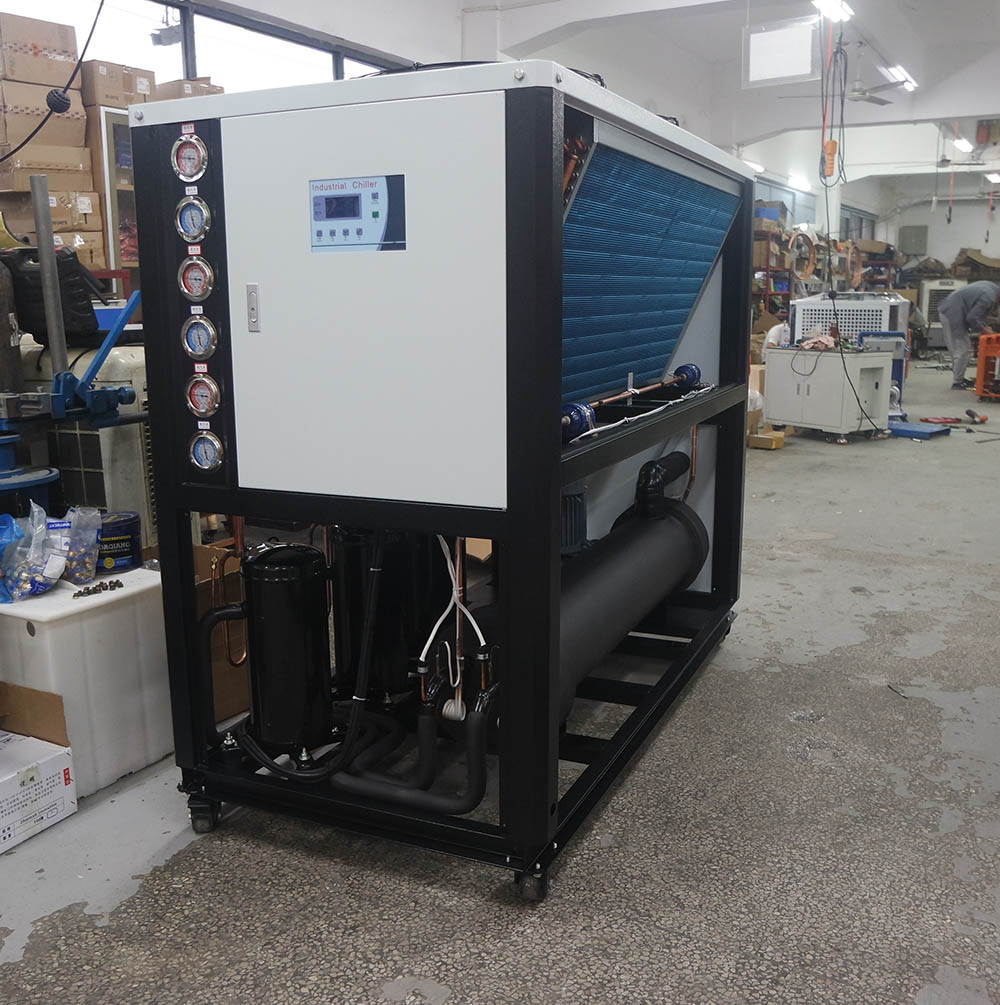

Both air cooled chillers and water cooled chillers are core industrial cooling systems, relying on the vapor compression cycle (as detailed in the earlier industrial chiller working principle guide) to remove heat. However, they differ significantly in heat dissipation methods, structure, performance, and application scenarios—critical factors for buyers to choose the right model. Below is a detailed comparison of their key differences. 1. Core Difference: Heat Dissipation Method (Condenser Operation) The fundamental distinction lies in how the condenser (a key component in the refrigeration cycle) releases heat to the external environment—this directly shapes the chiller’s design and usage conditions. Air Cooled Chiller Heat Dissipation Medium: Uses ambient air as the cooling medium. Condenser Design: Equipped with an air-cooled condenser (finned coils + fans). After the compressor outputs high-temperature refrigerant vapor, the vapor flows through the condenser coils; fans blow ambient air over the fins, transferring heat from the refrigerant to the air, which is then discharged to the atmosphere. No Additional Water System: Does not require a separate water supply or circulation system for cooling, simplifying installation. Water Cooled Chiller Heat Dissipation Medium: Uses water (usually from a cooling tower or tap water) as the cooling medium. Condenser Design: Features a water-cooled condenser (shell-and-tube or plate heat exchanger). High-temperature refrigerant vapor enters the condenser, and cooling water flows through the exchanger’s tubes; heat is transferred from the refrigerant to the water, which then carries the heat away (e.g., to a cooling tower, where the water is cooled and recycled). Depends on Auxiliary Water Systems: Requires matching equipment like cooling towers, water pumps, and pipelines to circulate and cool the water—adding complexity to the overall system. 2. Structural & Installation Differences Air Cooled Chiller Structure: More compact, integrating the condenser, fans, and main unit into one system. No need for additional water tanks, pumps, or cooling towers. Installation Requirements: Needs sufficient open space (e.g., rooftops, outdoor yards) to ensure unobstructed air flow—blocked air intake will reduce heat dissipation efficiency. Requires minimal pipeline work (only for process fluid circulation, not cooling water). Shorter installation time (typically 1-2 weeks for small-to-medium models). Water Cooled Chiller Structure: The main unit (compressor, evaporator, condenser) is separate from auxiliary equipment (cooling tower, water pump, water treatment system), leading to a more scattered layout. Installation Requirements: Needs space for both the chiller unit and auxiliary water systems (cooling towers are often installed on rooftops, while pumps may be in machine rooms). Requires complex pipeline installation (for cooling water circulation, includ...
