محمل هوبر مفرغ عالي الكفاءة لخط إنتاج قوالب الحقن البلاستيكية
-----------------------------
-----------------------------
-----------------------------
أ العنوان : رقم 2 (103 ب)، منطقة إيان الصناعية، مدينة فنغانغ، مدينة دونغقوان، مقاطعة قوانغدونغ، الصين.

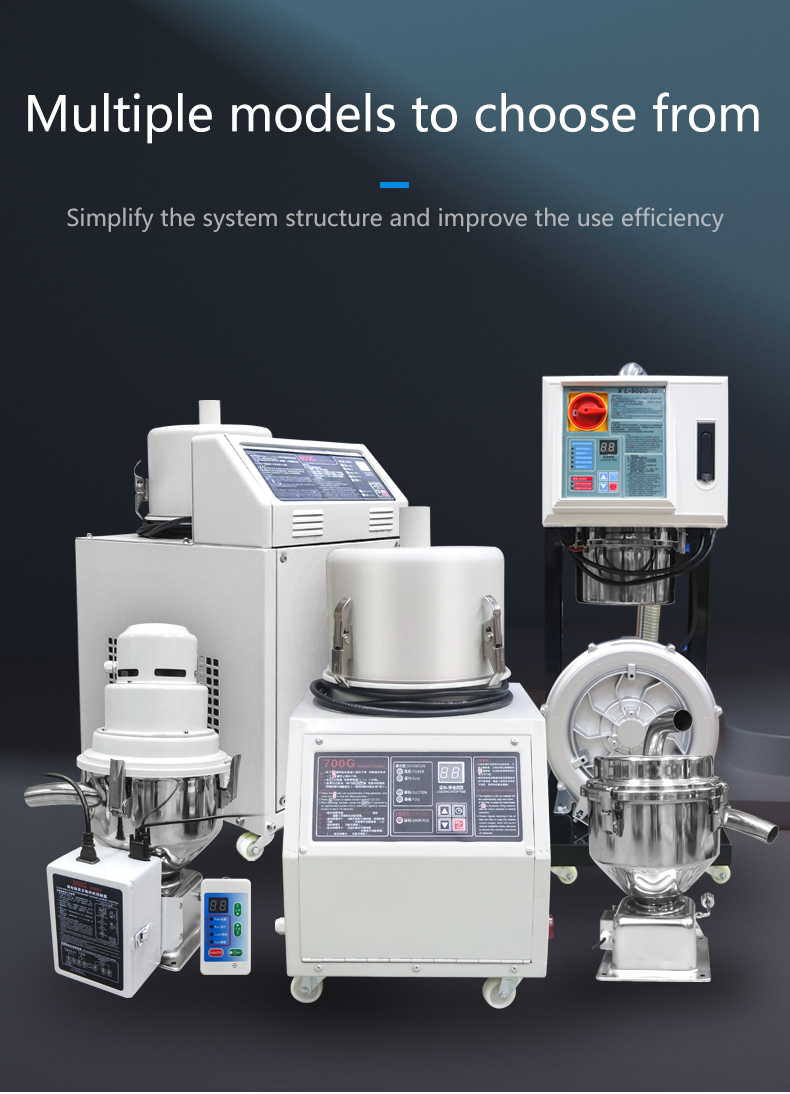

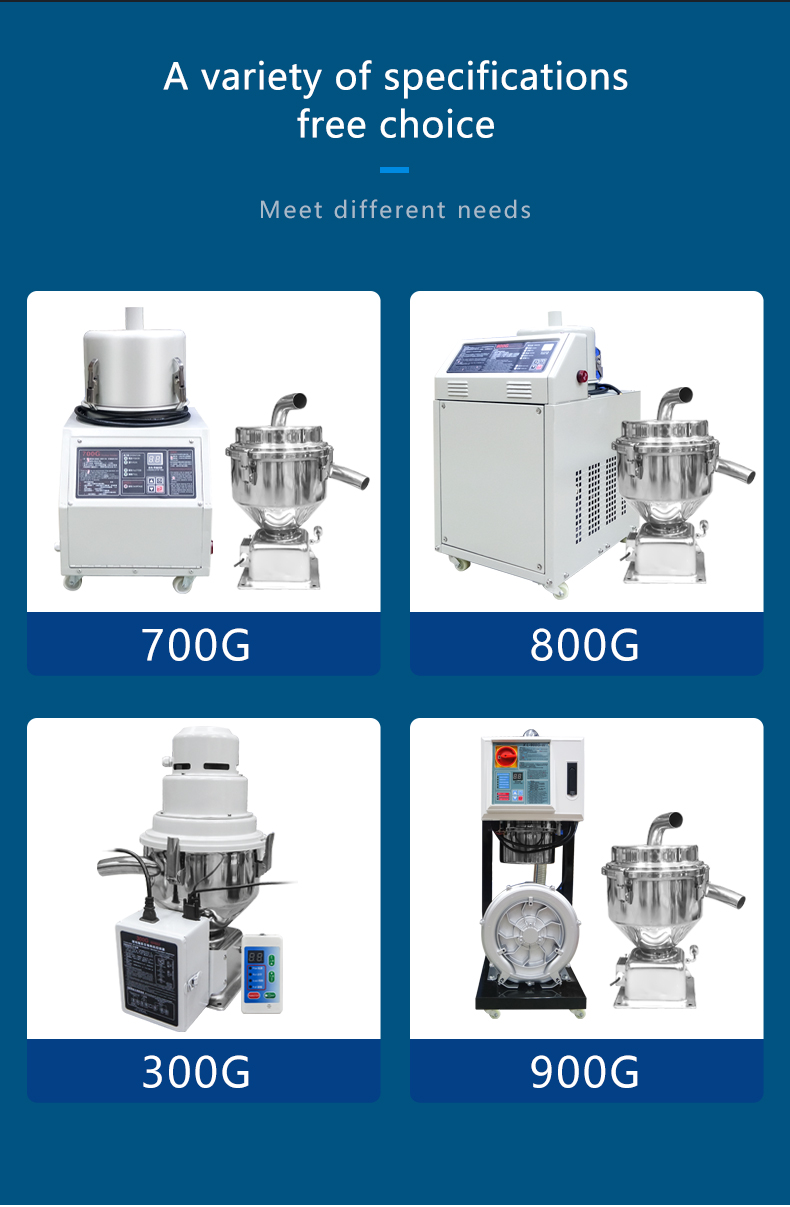

إن اللودر الآلي، المعروف أيضًا باسم محمل المواد أو محمل الفراغ، هو قطعة أساسية من المعدات في صناعة معالجة البلاستيك. إنه مصمم لنقل حبيبات البلاستيك أو المواد الأخرى تلقائيًا من حاويات التخزين إلى آلات المعالجة مثل قوالب الحقن، والبثق، وقوالب النفخ.
إن أداة التحميل التلقائي للبلاستيك عبارة عن معدات آلية مصممة خصيصًا لصناعة معالجة البلاستيك. يمكنه نقل جزيئات البلاستيك والمساحيق والمواد الأخرى تلقائيًا إلى معدات الإنتاج، وتحسين كفاءة الإنتاج وتقليل العمليات اليدوية. تتميز هذه المعدات بخصائص الهيكل المدمج والتشغيل المريح والأداء المستقر، وتستخدم على نطاق واسع في مجالات إنتاج المنتجات البلاستيكية وإعادة تدوير البلاستيك.
إن أداة التحميل التلقائي للمواد البلاستيكية عبارة عن معدات آلية مصممة خصيصًا لنقل جزيئات البلاستيك والمساحيق والمواد الأخرى. يمكنها نقل المواد البلاستيكية بكفاءة وتلقائية من مواقع التخزين إلى معدات المعالجة، مما يحسن بشكل كبير من كفاءة الإنتاج ويقلل من كثافة اليد العاملة. تستخدم هذه المعدات على نطاق واسع في إنتاج المنتجات البلاستيكية ومعالجة البلاستيك وغيرها من الصناعات.
جهاز التحميل الآلي للبلاستيك هو جهاز يستخدم في صناعة معالجة البلاستيك. وتتمثل وظيفتها الرئيسية في نقل المواد الخام البلاستيكية تلقائيًا إلى معدات المعالجة، مما يحسن بشكل كبير كفاءة الإنتاج ويقلل من كثافة اليد العاملة في التشغيل اليدوي.
Overview The ZL-500T is a 500-ton (1758.5 kW) industrial FRP counter flow cooling tower purpose-built for plant manager operations applications. ZILLION engineered this 500-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 1758.5 kW (500 refrigeration ton) Water flow rate: 392.4 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 2600 CMM at 2700 mm fan diameter Motor power: 7.5 kW at 380V 3-phase 50 Hz Head loss: 36 kPa at design flow Dry weight: 2900 kg, operating weight: 5800 kg Overall dimensions: H3870 x Dia5600 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications district cooling mega-capacity data center industrial 2900 kg dry weight enables ground-level and structural foundation installation. Operating weight 5800 kg supports 24/7 continuous duty cycle for district cooling mega-capacity data center industrial operations. 7.5 kW motor and 2600 CMM airflow deliver reliable heat rejection for process cooling and HVAC chiller condenser loops at district-cooling scale. Quiet 72 dB(A) operation with acoustic enclosure upgrade option. Contact ZILLION Today Get a quote for the ZL-500T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.
Overview The ZL-200T is a 200-ton (703.4 kW) industrial FRP counter flow cooling tower purpose-built for maintenance technician applications. ZILLION engineered this 200-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 703.4 kW (200 refrigeration ton) Water flow rate: 156.2 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 1250 CMM at 1750 mm fan diameter Motor power: 4 kW at 380V 3-phase 50 Hz Head loss: 30 kPa at design flow Dry weight: 880 kg, operating weight: 1980 kg Overall dimensions: H2850 x Dia3300 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications Routine service schedule: weekly water quality check, monthly float valve inspection, quarterly fill media inspection, semi-annual fan motor bearing service. Direct-drive 4 kW motor with single-fan configuration. Spare parts inventory: 4 kW fan motor, float valve assembly, fill media sections. Easy-access side panels for inspection without tools. Vibration monitoring ready with optional sensor mount. On-site commissioning service available. Contact ZILLION Today Get a quote for the ZL-200T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.
عندما تكون درجة حرارة القالب أقل من القيمة المحددة، يبدأ نظام التسخين الخاص بوحدة التحكم في درجة حرارة القالب في تسخين وسيط الحرارة إلى درجة الحرارة المطلوبة. عندما تكون درجة حرارة القالب أعلى من القيمة المحددة، يبدأ نظام التبريد الخاص بوحدة التحكم في درجة حرارة القالب في تبريد وسط الحرارة إلى درجة الحرارة المطلوبة.
Overview The ZL-50T is a 50-ton (175.85 kW) industrial FRP counter flow cooling tower purpose-built for injection molding applications. ZILLION engineered this 50-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 175.85 kW (50 refrigeration ton) Water flow rate: 39.2 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 330 CMM at 930 mm fan diameter Motor power: 1.5 kW at 380V 3-phase 50 Hz Head loss: 17 kPa at design flow Dry weight: 190 kg, operating weight: 975 kg Overall dimensions: H1940 x Dia1860 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications 39.2 m3/h water flow rate suits 500-700 ton injection molding machines for plastic mold cooling circuits. 175.85 kW heat rejection at 50 ton (TR) capacity for large capacity industrial batch production lines. Cycle time consistency at 32 deg C leaving water improves part quality. Compact footprint suitable for workshop installation with direct piping to chiller. Contact ZILLION Today Get a quote for the ZL-50T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.


سلسلة منتجات شركتنا معروفة جيدًا في صناعة الآلات البلاستيكية المساعدة لأدائها الممتاز وأداء التكلفة العالية.
