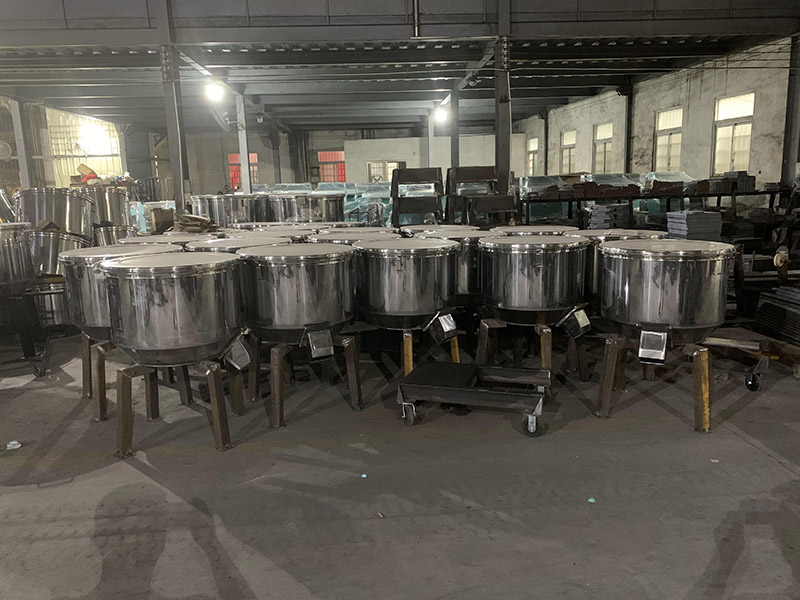

آلة خلط عمودية عالية الكفاءة لخلط حبيبات البلاستيك والمواد المضافة

الخلاط البلاستيكي هو نوع من المعدات المستخدمة لخلط جزيئات البلاستيك والمساحيق والمواد الأخرى. من خلال طريقة التحريك المحددة، فإنه يخلط بشكل متساوي المواد البلاستيكية من مختلف الأنواع، الألوان أو التركيبات لتلبية الاحتياجات المختلفة في عملية معالجة البلاستيك. تُستخدم هذه المعدات على نطاق واسع في مجالات مثل إنتاج المنتجات البلاستيكية وتعديل البلاستيك وإعادة تدوير البلاستيك.

خلاط البلاستيك هو جهاز يستخدم في صناعة معالجة البلاستيك. يمكنها مزج أنواع مختلفة من المواد الخام البلاستيكية والمواد المضافة بالتساوي. وتتكون عادة من برميل الخلط، ومجداف الخلط، وجهاز النقل ونظام التحكم. إنه سهل التشغيل، ويمكنه تحسين كفاءة الإنتاج، وضمان التركيب الموحد للمنتجات البلاستيكية وتحسين جودة المنتج.

Quick Specs: ZL-MX customizable vertical plastic mixer with multiple capacity options, custom configurations available, CE certified. Best for specific plastic mixing requirements.

Overview The ZL-125T is a 125-ton (439.6 kW) industrial FRP counter flow cooling tower purpose-built for cip pharmaceutical applications. ZILLION engineered this 125-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 439.6 kW (125 refrigeration ton) Water flow rate: 97.5 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 830 CMM at 1450 mm fan diameter Motor power: 2.2 kW at 380V 3-phase 50 Hz Head loss: 23 kPa at design flow Dry weight: 540 kg, operating weight: 1640 kg Overall dimensions: H2570 x Dia2900 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications SS316L stainless steel upgrade option for sanitary tri-clamp connections. CIP cycle compatible at 80 deg C hot water sanitization per cGMP standards for biotech and pharmaceutical processes. 439.6 kW heat rejection supports clean utility loops for Water-for-Injection and purified water systems. FDA 21 CFR and ASME BPE compliant for bioprocessing equipment. EHEDG hygienic design compliant. Contact ZILLION Today Get a quote for the ZL-125T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-50T is a 50-ton (175.85 kW) industrial FRP counter flow cooling tower purpose-built for plant manager operations applications. ZILLION engineered this 50-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 175.85 kW (50 refrigeration ton) Water flow rate: 39.2 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 330 CMM at 930 mm fan diameter Motor power: 1.5 kW at 380V 3-phase 50 Hz Head loss: 17 kPa at design flow Dry weight: 190 kg, operating weight: 975 kg Overall dimensions: H1940 x Dia1860 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications large capacity industrial 190 kg dry weight enables ground-level and structural rooftop installation. Operating weight 975 kg supports 24/7 continuous duty cycle for large capacity industrial operations. 1.5 kW motor and 330 CMM airflow deliver reliable heat rejection for plastic injection molding and HVAC chiller condenser loops. Quiet 68 dB(A) operation suitable for indoor equipment rooms adjacent to manufacturing floor. Contact ZILLION Today Get a quote for the ZL-50T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-10T is a 10-ton (35.2 kW) industrial FRP counter flow cooling tower purpose-built for injection molding applications. ZILLION engineered this 10-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in compact industrial installations. Key Specifications Cooling capacity: 35.2 kW (10 refrigeration ton) Water flow rate: 7.81 m3/h (130 L/min) design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 85 CMM at 635 mm fan diameter Motor power: 0.37 kW (0.5 HP) at 380V 3-phase 50 Hz Head loss: 13 kPa at design flow Dry weight: 46 kg, operating weight: 190 kg Overall dimensions: H1820 x Dia940 mm Design Features FRP counter-flow shell for corrosion resistance and long service life ABS plastic fan blade for low maintenance and quiet operation IP55 Class F insulation for harsh industrial environments Counter flow square configuration for maximum heat transfer efficiency Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications 7.81 m3/h water flow rate suits small injection molding machines (20-100 ton) for plastic mold cooling circuits. Cycle time consistency at 32 deg C leaving water improves part quality for small-batch production. Compact footprint suitable for workshop installation. Contact ZILLION Today Get a quote for the ZL-10T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-30T is a 30-ton (105.5 kW) industrial FRP counter flow cooling tower purpose-built for agriculture food processing applications. ZILLION engineered this 30-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 105.5 kW (30 refrigeration ton) Water flow rate: 23.4 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 230 CMM at 770 mm fan diameter Motor power: 0.75 kW at 380V 3-phase 50 Hz Head loss: 16 kPa at design flow Dry weight: 116 kg, operating weight: 530 kg Overall dimensions: H2000 x Dia1650 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications SS316L food-grade stainless steel upgrade option for mid-large HTST pasteurization (72 to 32 deg C pre-cooling) and chiller condenser loop (4 deg C chilled water final cooling). 105.5 kW capacity supports 7,000 L/h milk processing lines. CE certified, FDA 21 CFR compliant materials. Suitable for brewery wort cooling, beverage production, and dairy processing operations. Contact ZILLION Today Get a quote for the ZL-30T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

The ZL-PC400 High-Capacity Plastic Crusher is engineered for regional recycling hubs and waste management operations processing 50-100+ tons of plastic waste per month. Its 7.5kW motor with 12 SKD-11 rotating blades delivers 400-500 kg/h sustained throughput of uniformly-sized PET, HDPE, PP, and PVC rigid plastic flakes-replacing two smaller PC300 units with 50% lower labor cost. Ideal High-Capacity Recycling Applications Regional PET/HDPE recycling hubs (50-200 t/mo throughput) Waste management company operations with mixed plastic streams Scrap trader / broker operations (high-volume sorting + baling) Export recycling operations (Africa, ME, SEA) Industrial in-house recovery (automotive, appliance, packaging)
