مجفف هوبر احترافي لمعالجة البلاستيك وتجفيف البلاستيك بدقة

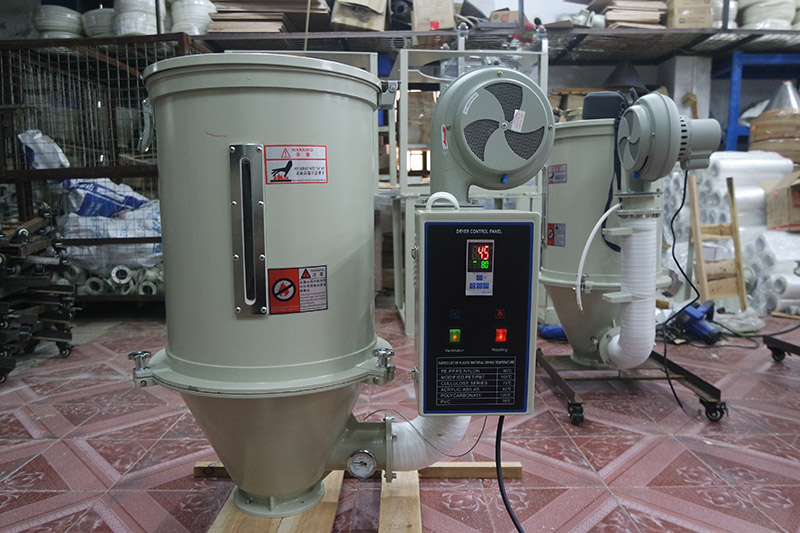

مجفف القادوس البلاستيكي هو جهاز يستخدم لتجفيف جزيئات البلاستيك. يتم استخدامه عادة مع معدات معالجة البلاستيك مثل آلات القولبة بالحقن والبثق. عن طريق تسخين الهواء وتدويره، يمكن لمجفف القادوس البلاستيكي إزالة الرطوبة من جزيئات البلاستيك وتحسين أداء المعالجة وجودة المنتج للبلاستيك.

المجفف البلاستيكي هو جهاز يستخدم لإزالة الرطوبة من المواد الخام البلاستيكية. أثناء معالجة البلاستيك، يمكن أن تؤثر الرطوبة الزائدة على جودة المنتجات البلاستيكية، مثل التسبب في فقاعات وعيوب سطحية. ويستخدم طرقًا مثل التدفئة والتهوية لتبخير الماء في الكريات البلاستيكية، مما يضمن أن يتمتع البلاستيك بأداء جيد في عمليات القولبة اللاحقة، مثل القولبة بالحقن والبثق.

مجففات البلاستيك لدينا مصممة بإتقان، وتوفر تجفيفًا عالي الكفاءة لمجموعة واسعة من المواد البلاستيكية. بفضل عناصر التسخين المتطورة وأنظمة التحكم الذكية، تضمن هذه المجففات إزالة سريعة للرطوبة، مما يقلل من توقف الإنتاج ويعزز إنتاجيتك الإجمالية. سواء كنت تعالج ABS أو PP أو النايلون أو غيرها من المواد البلاستيكية الهندسية، تضمن مجففاتنا نتائج تجفيف ثابتة، مما يحسن جودة منتجاتك النهائية.

Overview The ZL-150T is a 150-ton (527.6 kW) industrial FRP counter flow cooling tower purpose-built for sustainability esg applications. ZILLION engineered this 150-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 527.6 kW (150 refrigeration ton) Water flow rate: 117.0 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 950 CMM at 1450 mm fan diameter Motor power: 2.2 kW at 380V 3-phase 50 Hz Head loss: 23 kPa at design flow Dry weight: 580 kg, operating weight: 1680 kg Overall dimensions: H2670 x Dia2900 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications Low-drift eliminator reduces water consumption 30 percent versus standard cooling towers. 2.2 kW motor with 950 CMM airflow delivers high thermal efficiency for extra-large commercial industrial applications. CE ISO 9001:2015 environmental compliance for ESG reporting and LEED documentation. Recyclable FRP shell at end of 20-year service life. ISO 14001 environmental management aligned. Scope 1+2 emissions reduction eligible for carbon credit programs. Water reclamation compatible with greywater reuse systems. Contact ZILLION Today Get a quote for the ZL-150T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-30T is a 30-ton (105.5 kW) industrial FRP counter flow cooling tower purpose-built for injection molding applications. ZILLION engineered this 30-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 105.5 kW (30 refrigeration ton) Water flow rate: 23.4 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 230 CMM at 770 mm fan diameter Motor power: 0.75 kW at 380V 3-phase 50 Hz Head loss: 16 kPa at design flow Dry weight: 116 kg, operating weight: 530 kg Overall dimensions: H2000 x Dia1650 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications 23.40 m3/h water flow rate suits 350-500 ton injection molding machines for plastic mold cooling circuits. 105.5 kW heat rejection at 30 ton (TR) capacity for medium-large batch production lines. Cycle time consistency at 32 deg C leaving water improves part quality for medium-large batch production. Compact footprint suitable for workshop installation with direct piping to chiller. Contact ZILLION Today Get a quote for the ZL-30T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-200T is a 200-ton (703.4 kW) industrial FRP counter flow cooling tower purpose-built for sustainability esg applications. ZILLION engineered this 200-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 703.4 kW (200 refrigeration ton) Water flow rate: 156.2 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 1250 CMM at 1750 mm fan diameter Motor power: 4 kW at 380V 3-phase 50 Hz Head loss: 30 kPa at design flow Dry weight: 880 kg, operating weight: 1980 kg Overall dimensions: H2850 x Dia3300 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications Low-drift eliminator reduces water consumption 30 percent versus standard cooling towers. 4 kW motor with 1250 CMM airflow delivers high thermal efficiency for HVAC regional district industrial applications. CE ISO 9001:2015 environmental compliance for ESG reporting and LEED documentation. Recyclable FRP shell at end of 20-year service life. ISO 14001 environmental management aligned. Scope 1+2 emissions reduction eligible for carbon credit programs. Water reclamation compatible with greywater reuse systems. Contact ZILLION Today Get a quote for the ZL-200T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-400T is a 400-ton (1407.0 kW) industrial FRP counter flow cooling tower purpose-built for agriculture food processing applications. ZILLION engineered this 400-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 1407.0 kW (400 refrigeration ton) Water flow rate: 312.1 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 2400 CMM at 2700 mm fan diameter Motor power: 7.5 kW at 380V 3-phase 50 Hz Head loss: 36 kPa at design flow Dry weight: 2840 kg, operating weight: 5740 kg Overall dimensions: H3870 x Dia5600 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications SS316L food-grade stainless steel upgrade option for district cooling mega industrial HTST pasteurization (72 to 32 deg C pre-cooling) and chiller condenser loop (4 deg C chilled water final cooling). 1407.0 kW capacity supports 30,000 L/h milk processing lines. CE certified, FDA 21 CFR compliant materials. Suitable for brewery wort cooling, beverage production, and dairy processing operations. USDA-FSIS compliant for meat and poultry processing. Contact ZILLION Today Get a quote for the ZL-400T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.

Overview The ZL-50T is a 50-ton (175.85 kW) industrial FRP counter flow cooling tower purpose-built for data center applications. ZILLION engineered this 50-ton counter flow cooling tower with CE ISO 9001:2015 certification and quality construction for long service life in demanding industrial environments. Key Specifications Cooling capacity: 175.85 kW (50 refrigeration ton) Water flow rate: 39.2 m3/h design flow Heat rejection: 5 deg C approach to wet-bulb at 27 deg C design Fan airflow: 330 CMM at 930 mm fan diameter Motor power: 1.5 kW at 380V 3-phase 50 Hz Head loss: 17 kPa at design flow Dry weight: 190 kg, operating weight: 975 kg Overall dimensions: H1940 x Dia1860 mm Design Features FRP counter-flow shell for corrosion resistance and 20-year service life Aluminum alloy fan blade for industrial duty IP55 Class F insulation for harsh industrial environments Counter flow design for maximum heat transfer efficiency and 3 deg C approach Low-drift eliminator reduces water loss to 0.01 percent of circulation Applications large capacity industrial reliability for large capacity industrial data center deployment supporting 175.85 kW heat rejection. 5 deg C wet-bulb approach at 27 deg C design condition supports server room chiller integration. ASHRAE TC 9.9 compliant for Class A1-A2 facilities. Compact 1940 x 1860 mm footprint fits distributed data center edge deployment. N+1 redundancy configuration supported. Contact ZILLION Today Get a quote for the ZL-50T cooling tower from ZILLION factory direct. Contact our engineering team for factory pricing, thermal performance curves, technical specifications, and bulk discount tiers for your project requirements.
